Heiden - Heritage Model F5

Build Year: 2009

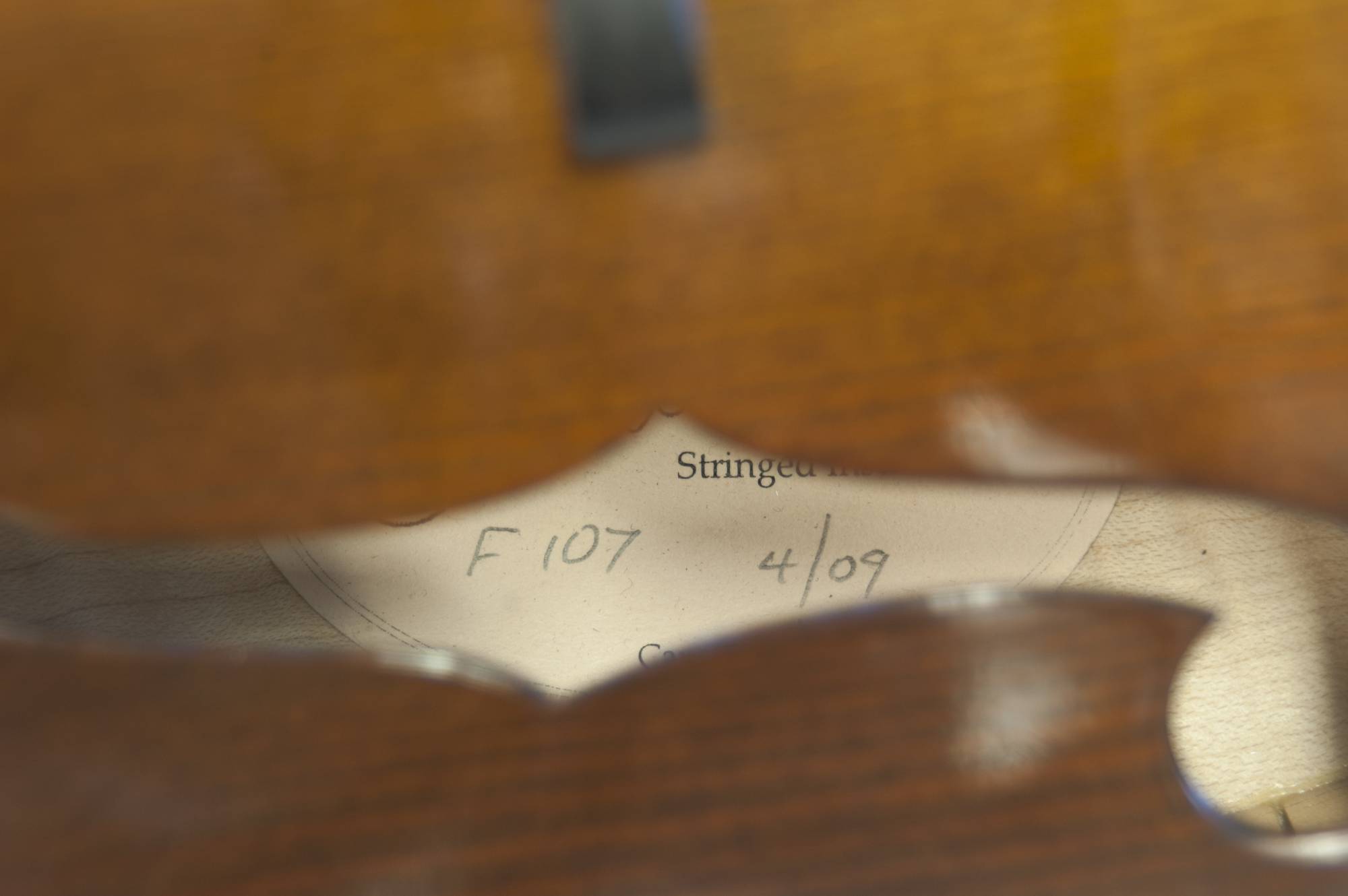

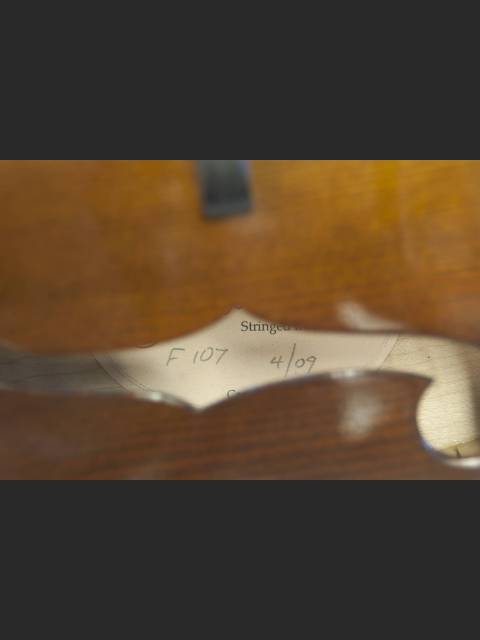

Serial: 107

Copy and paste the code below to share this image gallery in a Mandolin Cafe post.

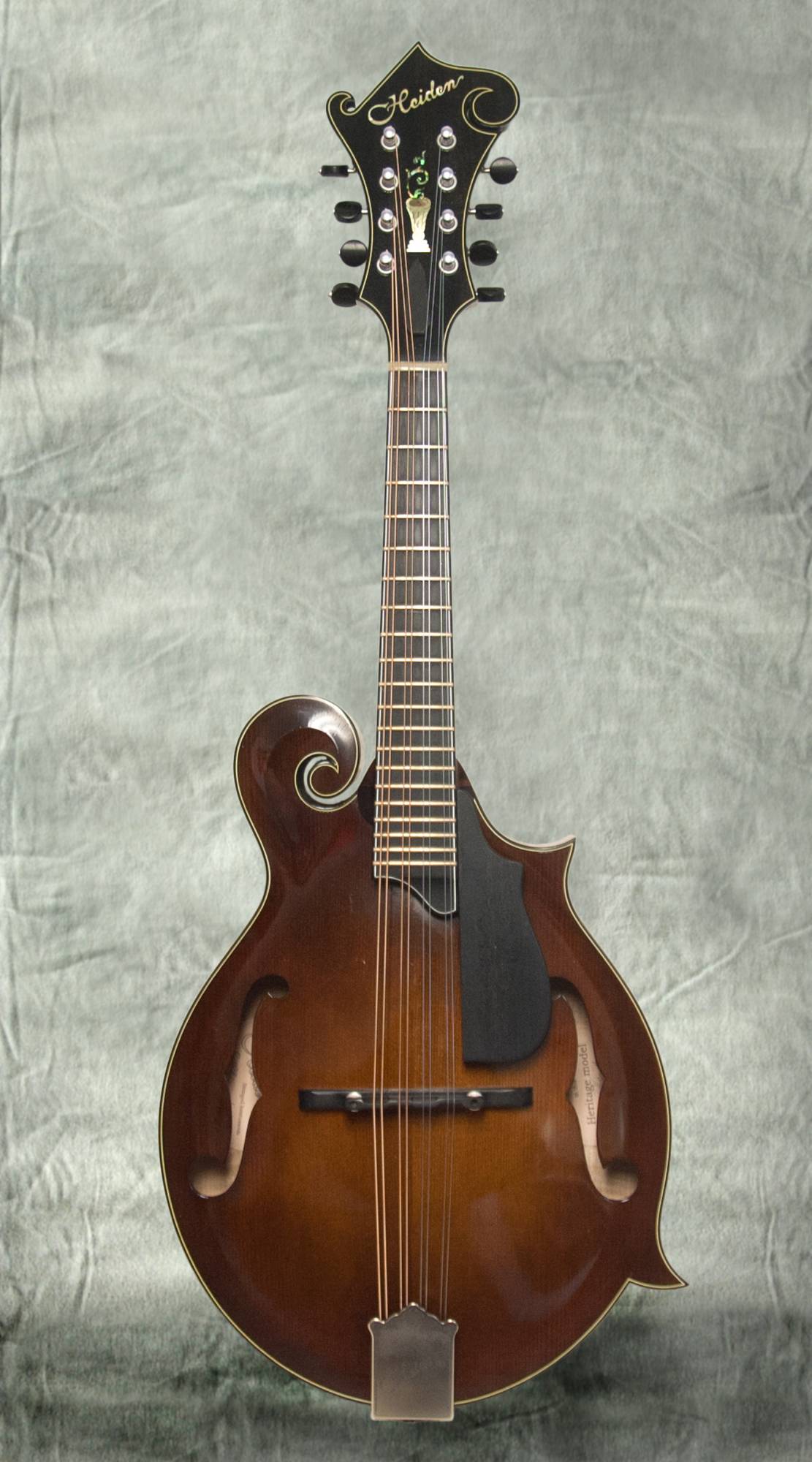

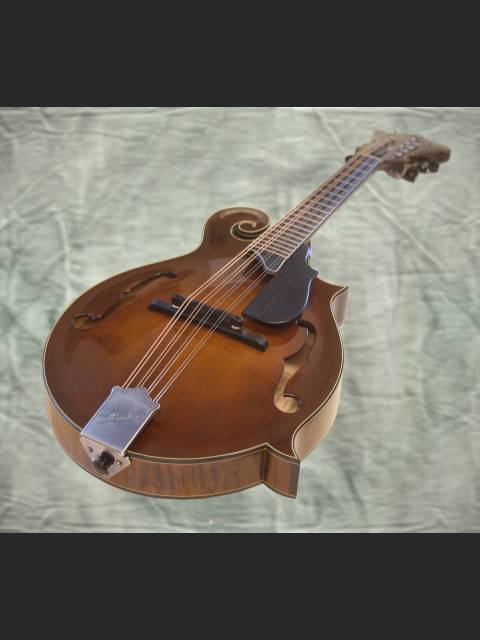

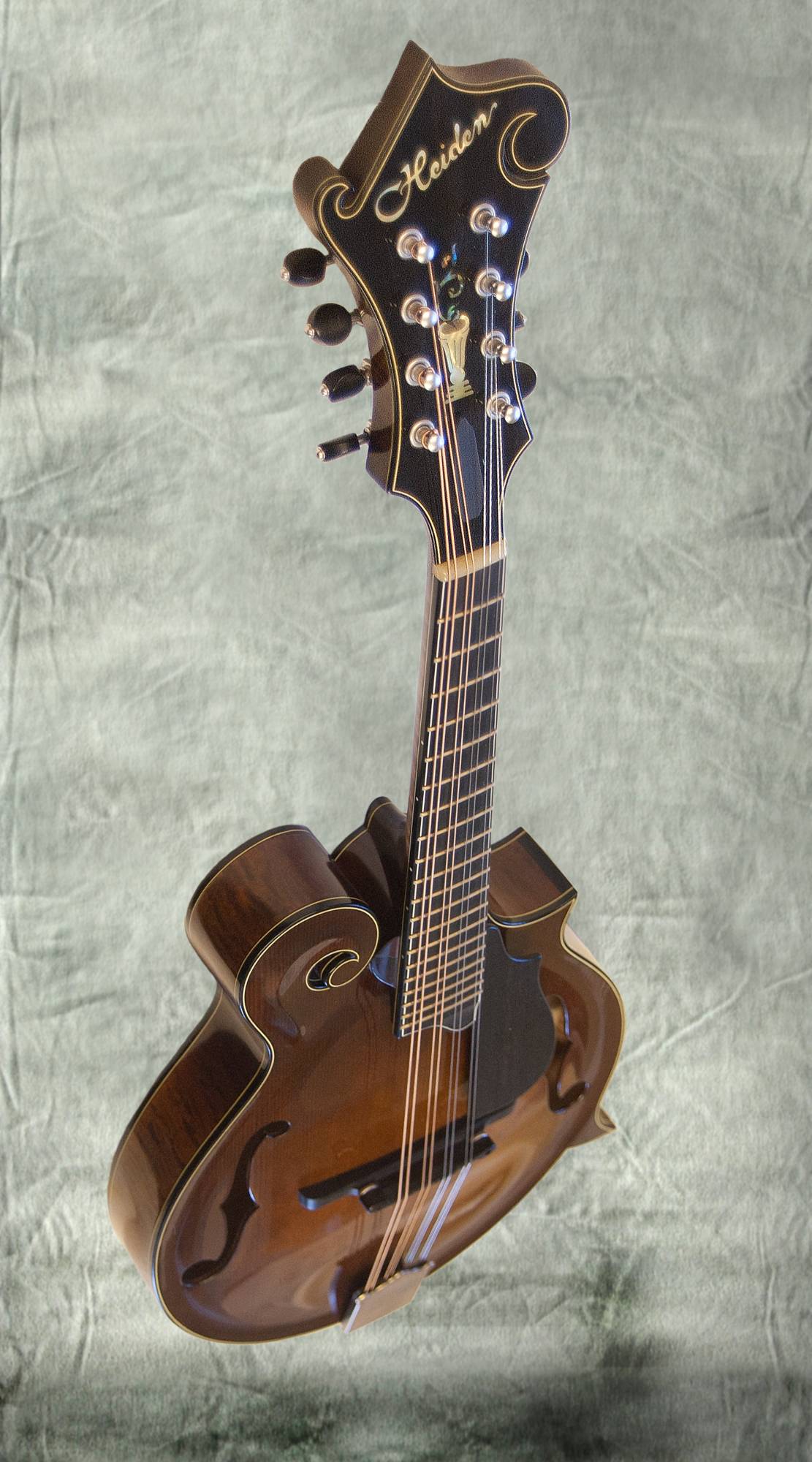

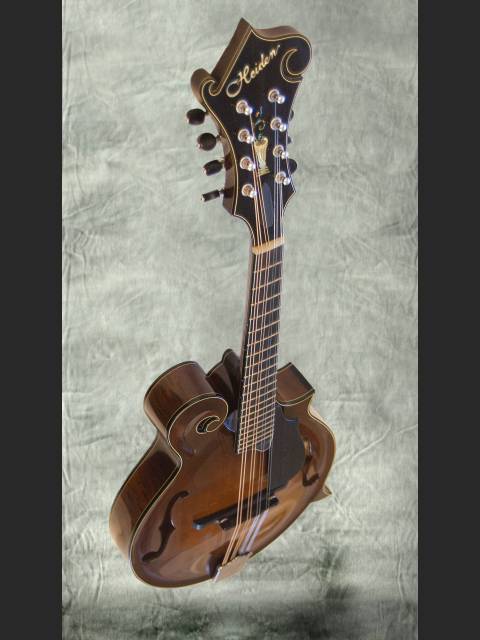

Beautifully documented example of a Heritage F5

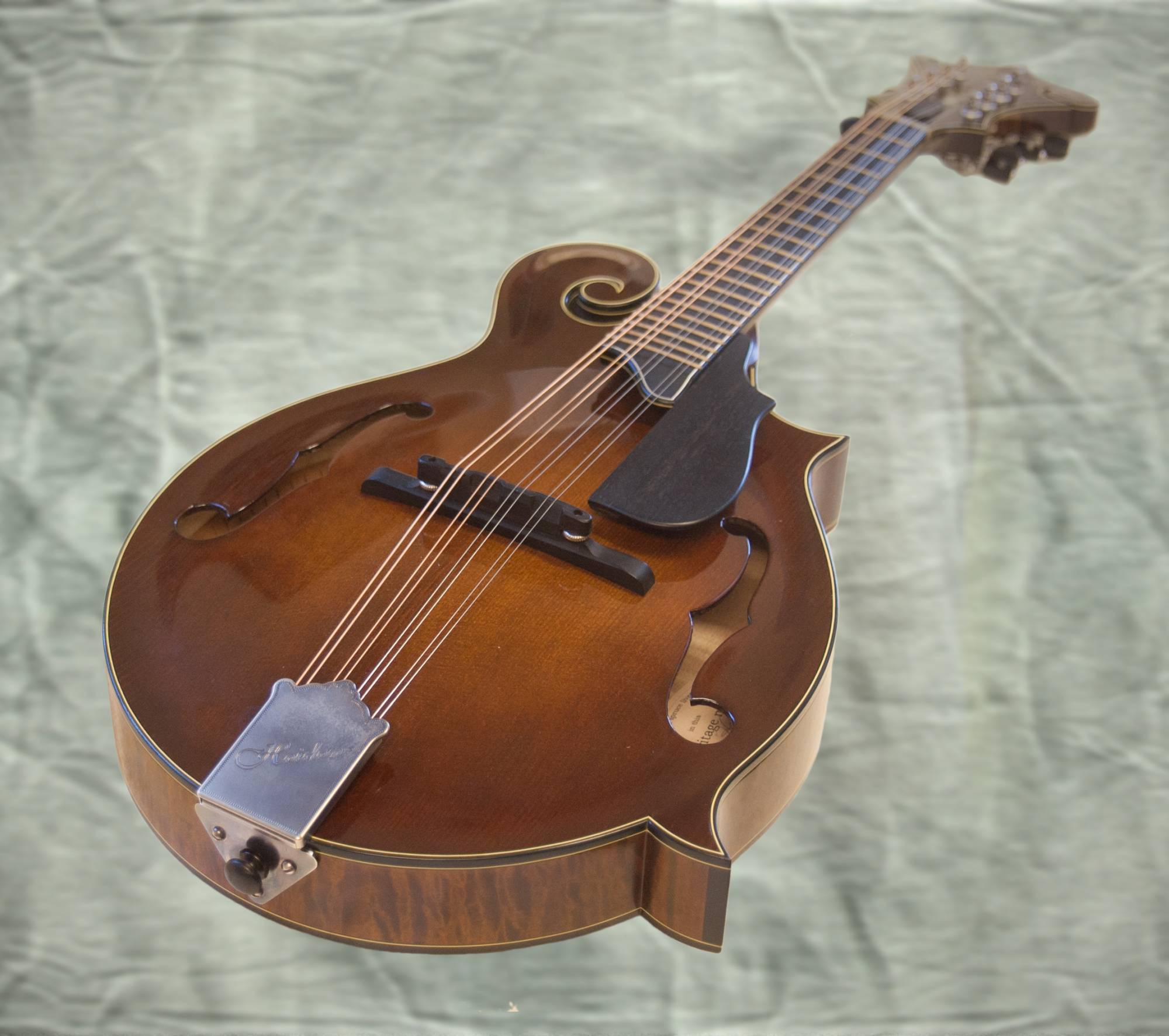

- Heiden Heritage Model F5, ser.# 107
- top: red spruce salvaged from a 100-yr. old building

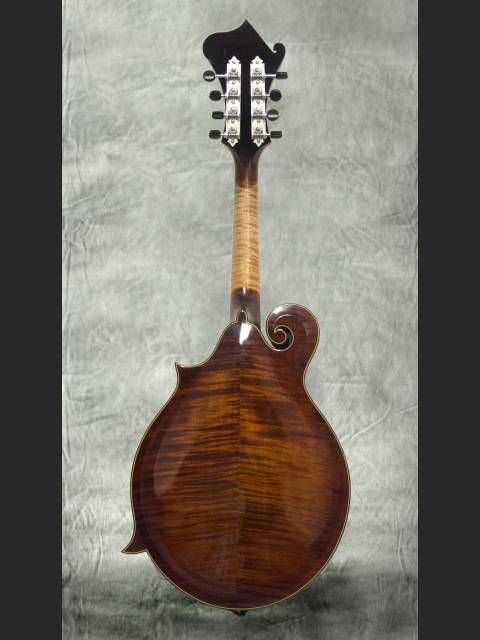

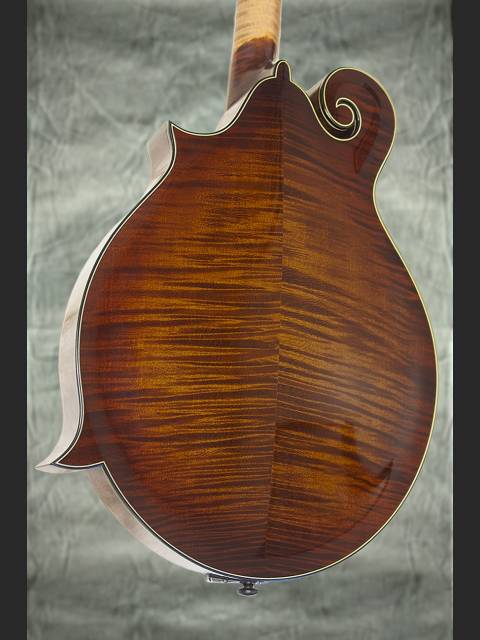

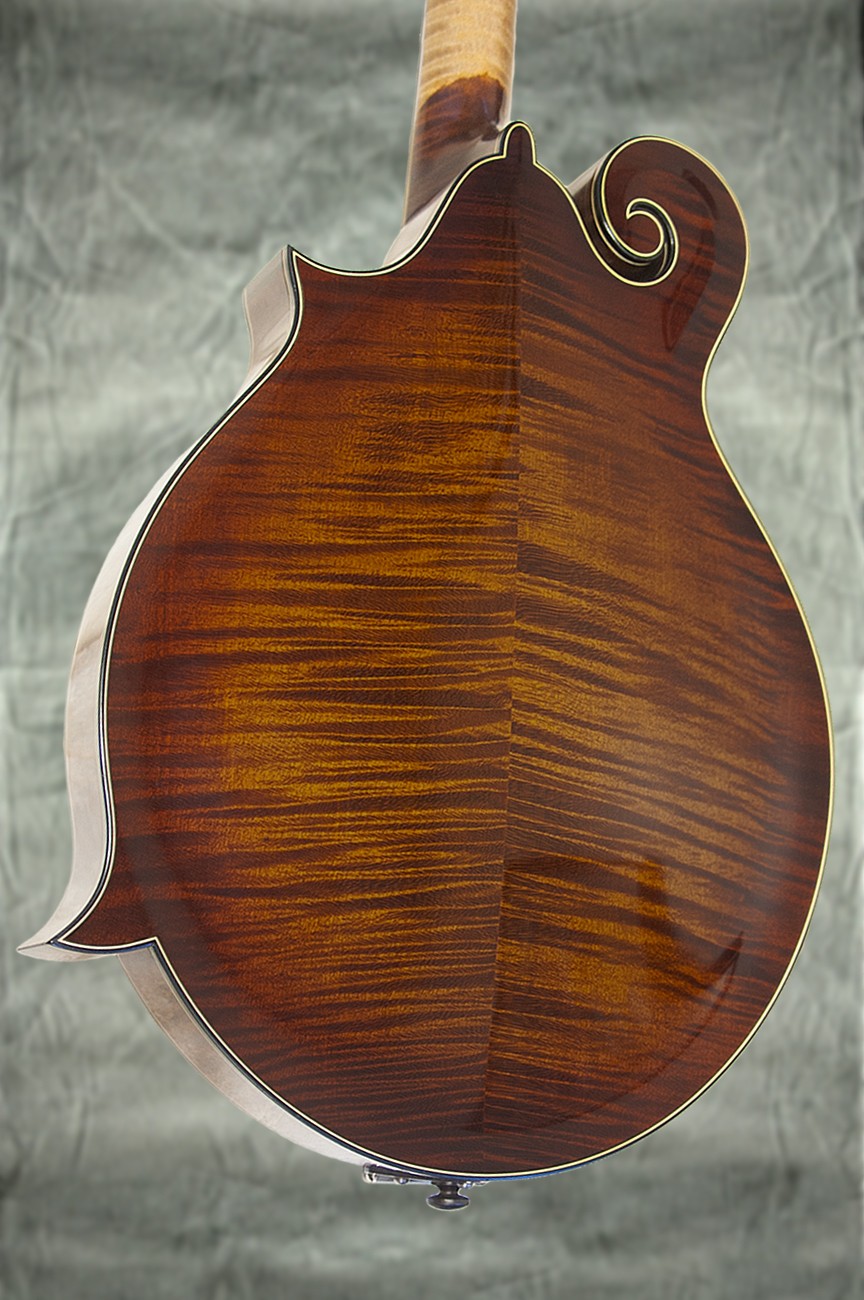

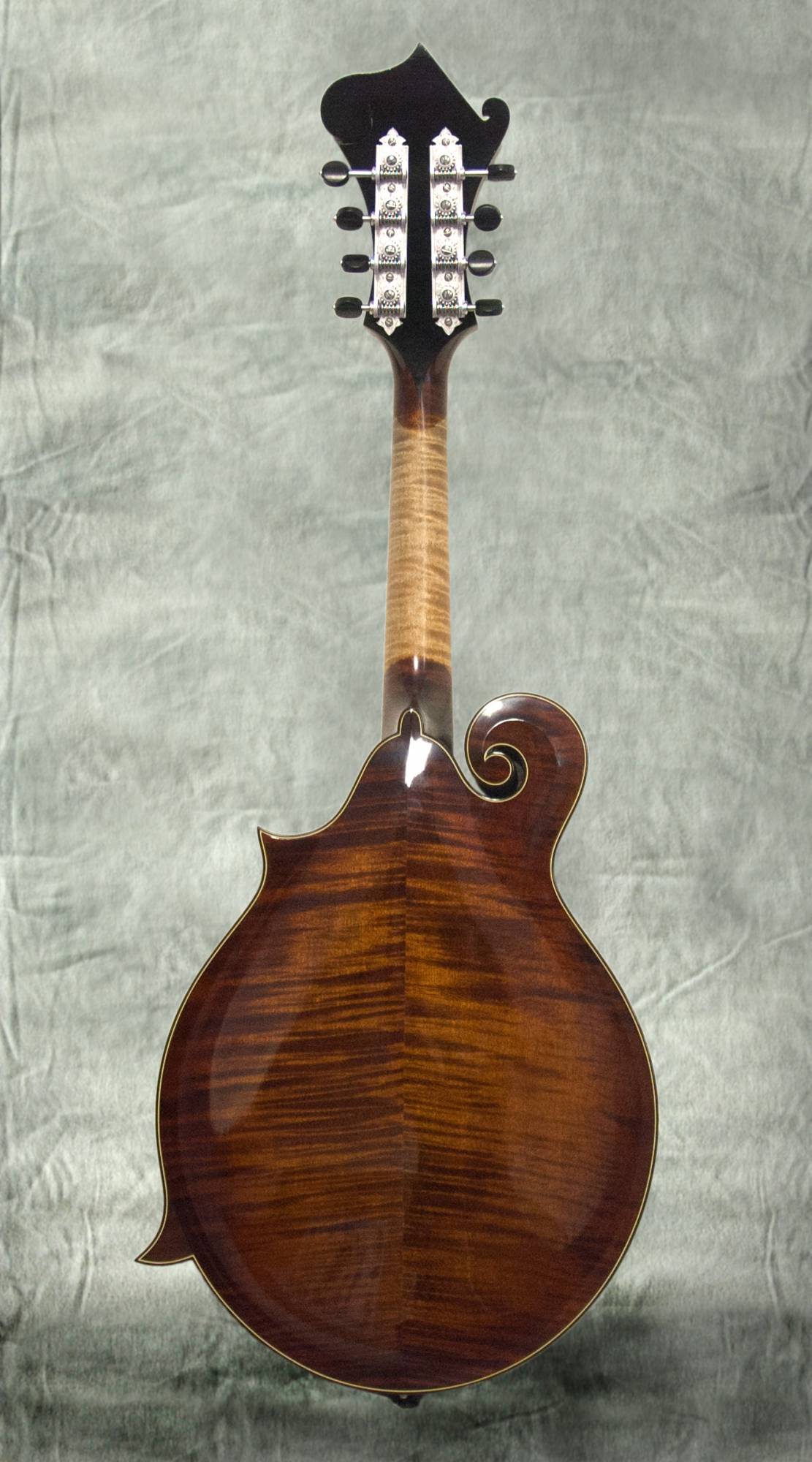

- back: two-piece flamed sugar maple
- sides: flamed sugar maple
- neck: flamed sugar maple, rounded-V profile w/ adjustable truss rod, 'speed neck' treatment
- body bindings: 5-ply black/white/black bindings (3-ply construction from the frontal view; sides have a black/white pinstripe across the bottom edge) on top, sides & back

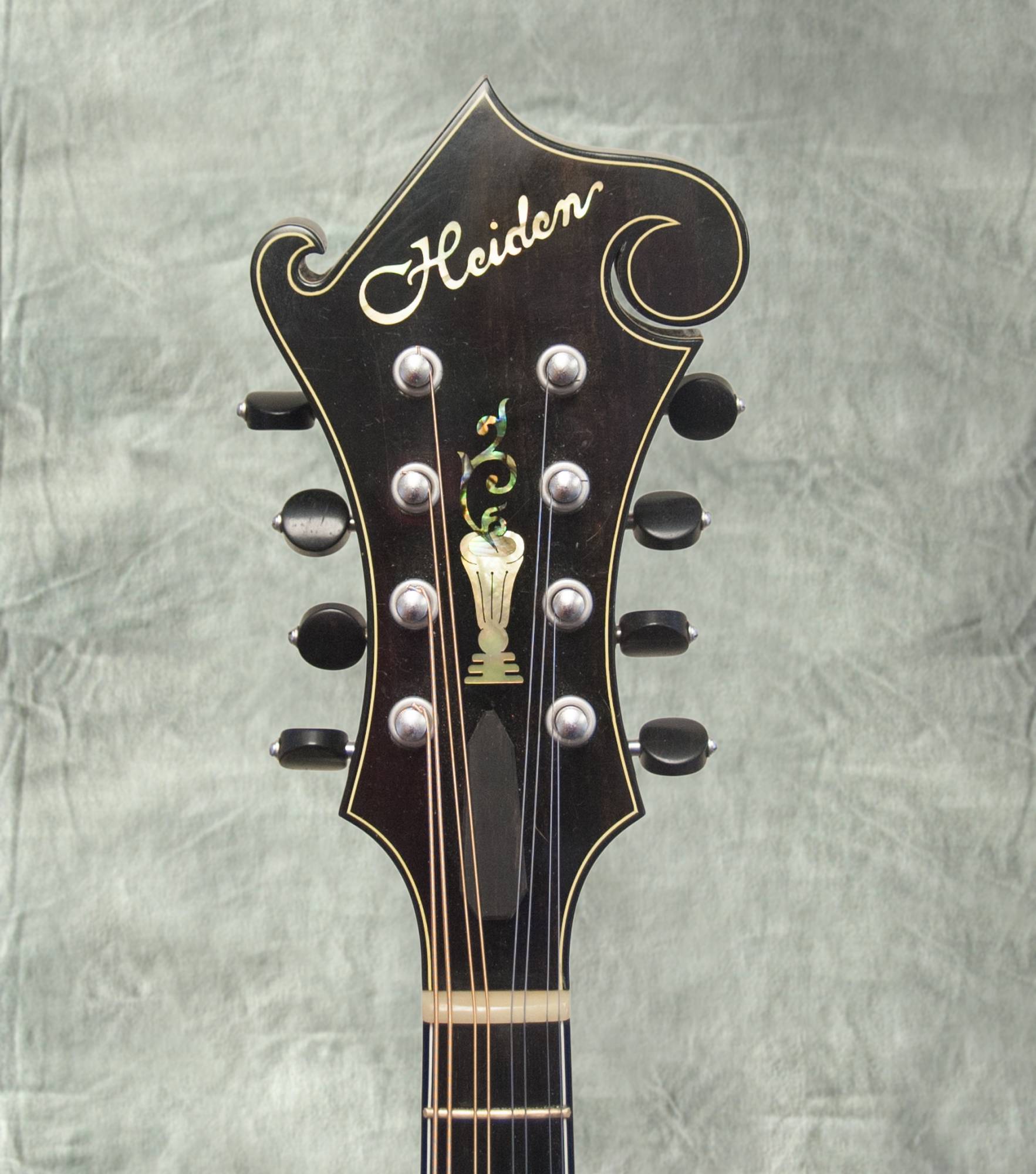

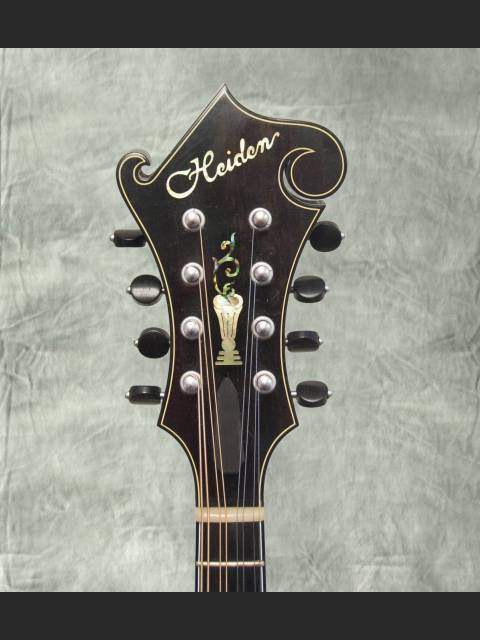

- front headplate: ebony w/ Heiden logo and 'flowerpot' inlay in mother of pearl ; black/ white/ black binding
- fingerboard: ebony w/ compound radius
- fingerboard binding: on top and sides
- nut: vintage bone
- bridge: adjustable ebony with single, full-contact foot
- saddle: radiused ebony

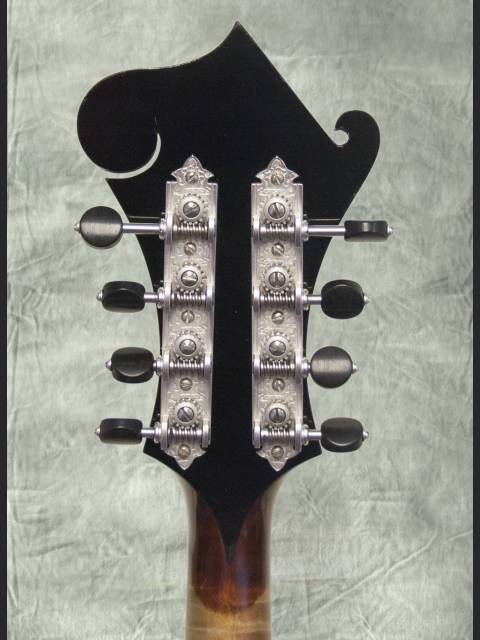

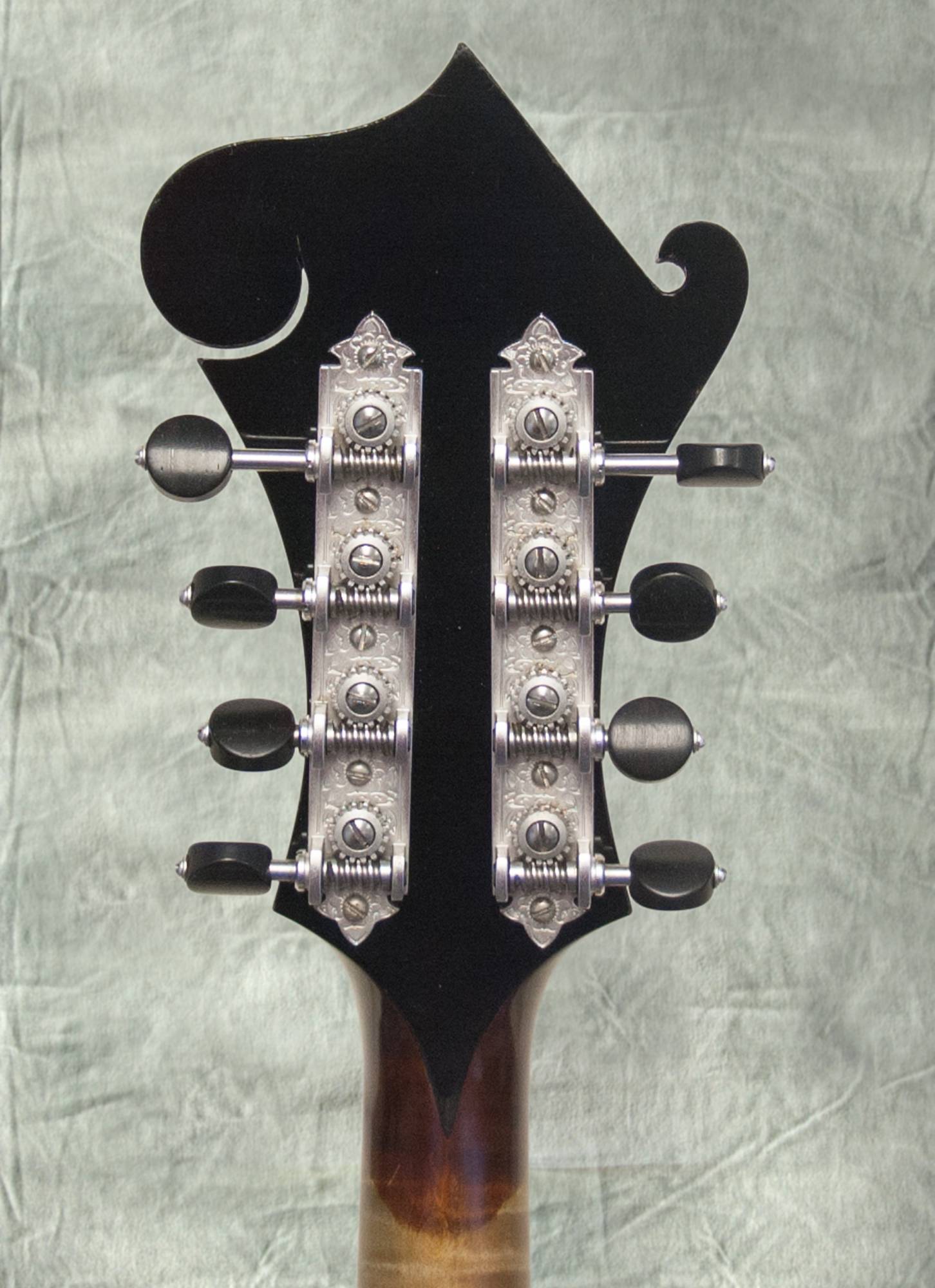

- tuners: Waverly, silver finish w/ eb0ny buttons
- fret markers: white dots in side binding only
- bracing: spruce tone-bars
- frets: EVO
- pickguard: unbound ebony
- tailpiece: silver finish Bill James tailpiece w/ engraved Heiden logo
- finish: french polish over oil varnish

1 of only 13 Heritage Model F5's built by Michael Heiden.

Originally owned by Ry Cooder before being purchased by it's current owner.

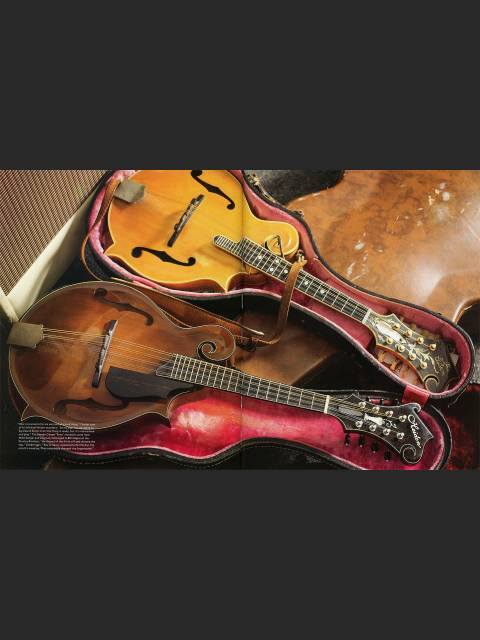

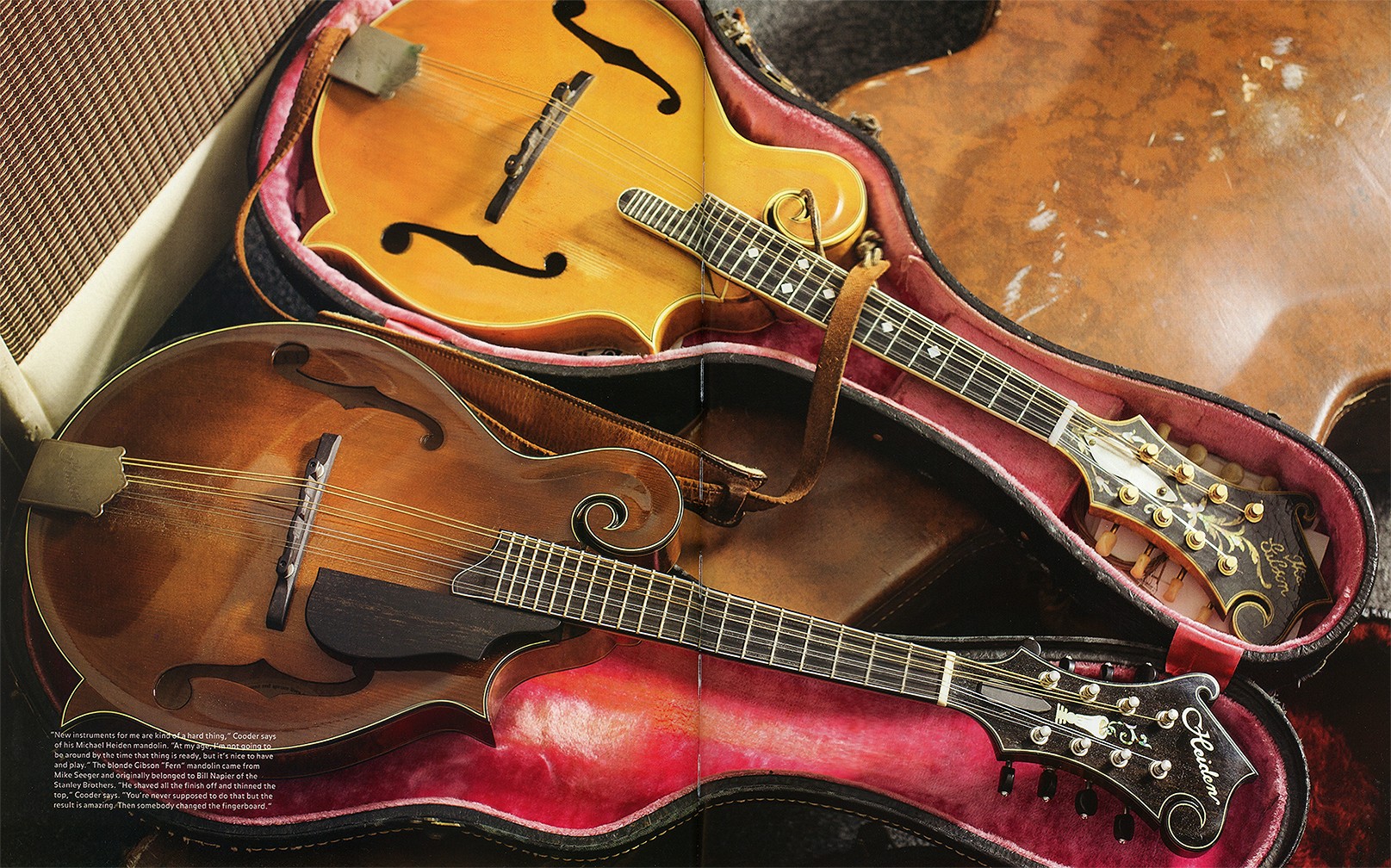

Featured in Fretboard Journal #32.




Photo Gallery

Photo Credit: Jim Magill
